PRODUCTION SETUP GUIDE

Load Balance LLM Providers
Group by Capability Before TrafficLoad Balance LLMs
Across Providers

Balance equivalent providers; verify constraints, signals, fairness, and failures.

Find relevant AI tools Run the production audit prompt

Published: March 21, 2026 · By the QVeris Team

Financial market workflow supporting Load Balance LLM Providers Group by Capability Before Traffic Load Balance LLMs Across Providers 跨 LLM 供应商负载均衡分配流量前先按能力分组 LLM 提供商均衡先按能力分组

TL;DR

Build strict pools

Same model label does not guarantee equivalent context, tools, region or policy.

Choose signals by bottleneck

Weights, concurrency, latency, quota and health optimize different problems.

Protect tenants

Use quotas, priority and fair queues so one workload cannot consume the pool.

Load-test failures

A balanced happy path says nothing about circuit breakers or recovery.

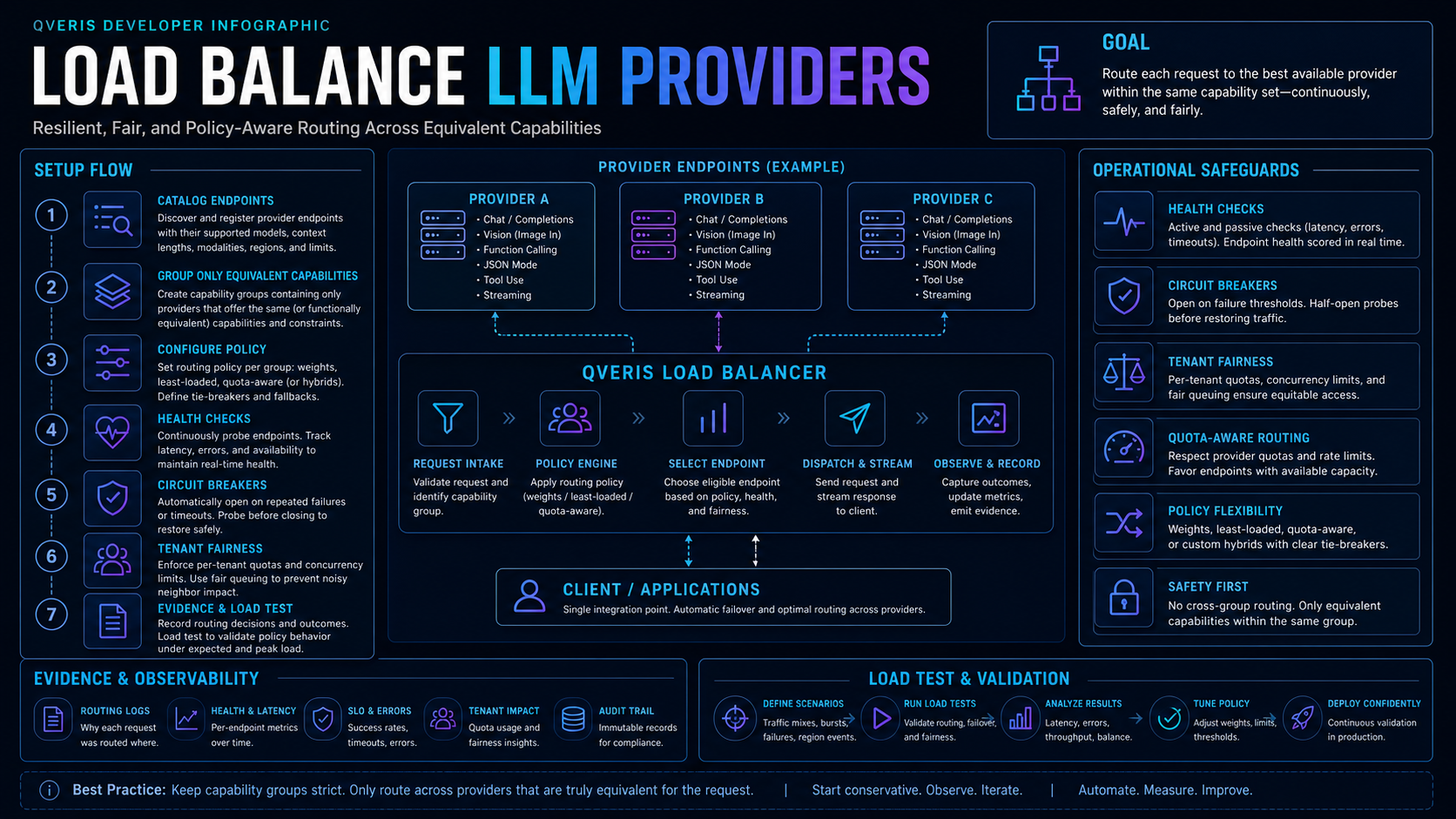

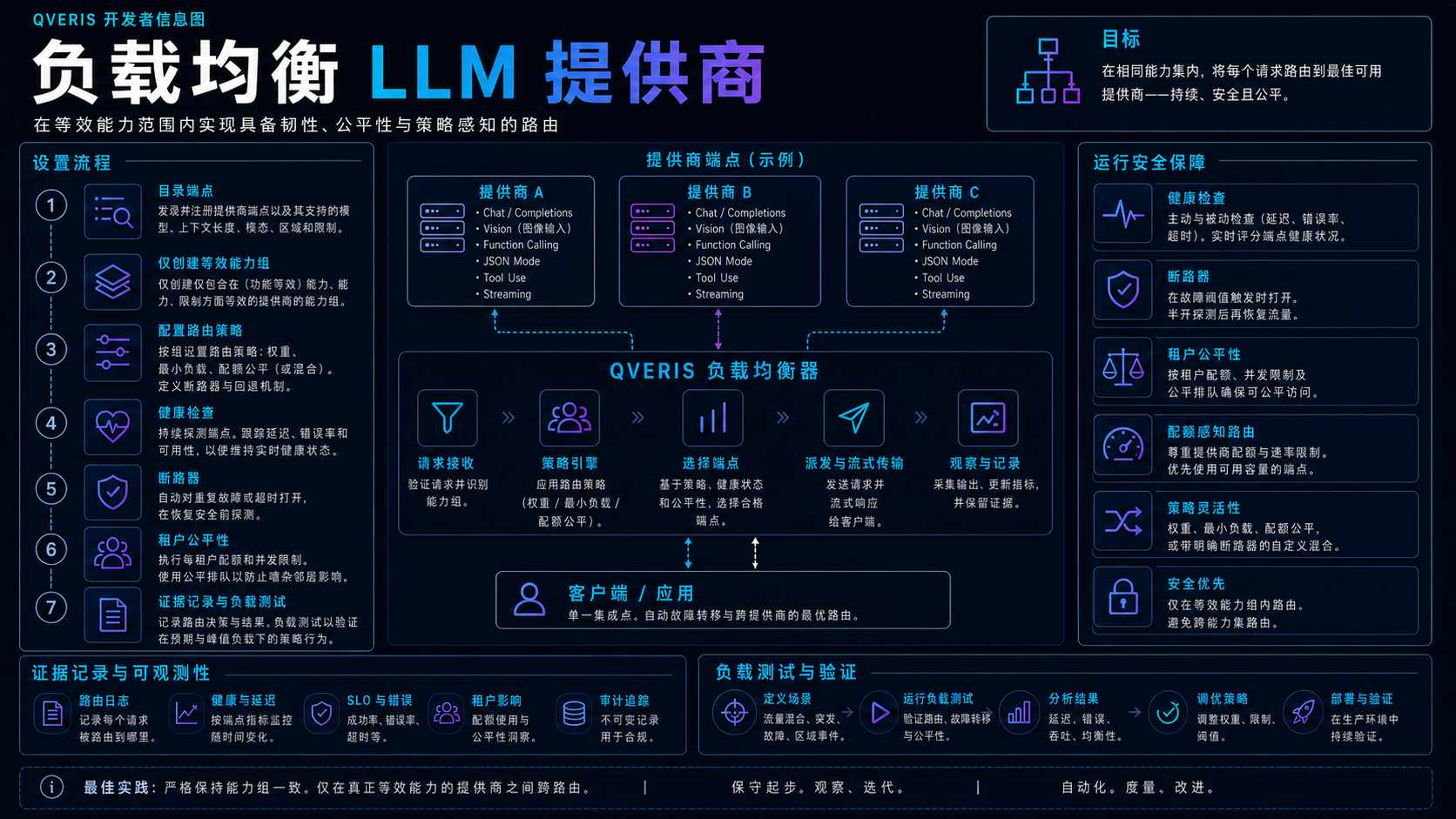

How to load balance LLM providers: catalog to canary

Register every endpoint with an immutable model version, supported input and output modes, context limits, tool and structured-output behavior, region, policy, quotas and health source. Do not place endpoints in one pool merely because their marketing names look similar. Create workload-specific pools only after the same contract fixtures pass.

Then choose the simplest strategy that matches the workload. Round robin may suit genuinely equivalent batch tasks; least-loaded selection needs trustworthy in-flight counters; latency-aware routing needs fresh regional measurements and a guard against sending all traffic to a temporarily fast endpoint. Add circuit breakers, replay realistic traffic, inject failures and canary policy changes before expanding.

Setup choices

Choice	Best fit	Verify before choosing
Weighted	Stable allocations across equivalent capacity.	Maintain weights and combine with health removal.
Least loaded	Concurrency predicts queueing for the workload.	Define comparable load units and damp noisy changes.
Latency aware	Interactive paths have trustworthy regional measurements.	Use tail latency and avoid cold-start bias.
Quota aware	Endpoints have independent limits or reset windows.	Respect tenant budgets and native retry signals.

Operational safeguards

Fresh state

Timestamp health, load, quota and circuit data used by each decision.

Circuit policy

Define trip, cooldown, half-open probes and gradual re-entry.

Fairness

Cap tenant concurrency and spend; reserve priority capacity deliberately.

Route evidence

Store candidate set, exclusions, signal snapshot, strategy and result.

Validate under realistic load

A uniform request generator can hide the conditions that break a production router. Build a replay set from actual prompt sizes, output lengths, streaming duration, tool use and tenant distribution. Keep expected outputs or validators with the replay so the test detects semantic drift as well as transport failure.

Replay workload mixes, bursts, long streams and noisy-neighbor tenant contention.
Inject regional latency, 429, 5xx, quota exhaustion and stale or contradictory health signals.
Measure request distribution, queue age, time to first token, tail latency, errors, cost and fairness by workload.
Verify a long stream does not occupy all capacity reserved for short interactive requests.
Canary policy changes by workload and retain a pinned-route rollback with the prior registry version.

Filter, score, dispatch, observe

A versioned catalog produces candidates. Hard filters first remove endpoints that fail mandatory requirements such as modality, context size, tool support, region, tenant policy or remaining quota. The selector then scores only the eligible set using fresh latency, capacity, cost and error signals. This ordering matters: a low score must never make an incompatible route eligible.

Dispatch one bounded attempt and record the catalog version, candidate set, rejected reasons, score inputs and selected route. Update health and circuit-breaker state outside the critical path, but attach freshness timestamps so stale telemetry cannot masquerade as current capacity. A fallback consumes the same parent deadline and attempt budget rather than starting a new request lifecycle.

Production rule: balance only among endpoints proven equivalent for the workload, and keep an explicit pinned route for diagnosis and rollback.

Balance inference and capabilities independently

The gateway balances model endpoints, while QVeris discovers and calls external APIs, tools, services and live data. These are different availability domains. A healthy model route does not prove that a market-data source, search tool or transaction API is healthy, entitled for the tenant or fresh enough for the task.

Keep model and capability pools, quotas, circuit breakers and retry budgets independent. Share only the context needed to correlate the workflow—tenant, parent trace, deadline, region and policy snapshot. If inference falls back after a tool result has already been produced, pass the verified result forward rather than calling the tool again unless its freshness contract requires a refresh.

Use healthy eligible routes, then balance

Load balancing must not send requests to a cheap route that lacks required features or data policy. Filter by capability, region, tenant, and current health; then use a stable selection method so retries do not randomly fan out.

Deterministic weighted selection

def choose_route(request, routes):
    eligible = [r for r in routes
                if r.healthy
                and request.capabilities <= r.capabilities
                and request.region in r.allowed_regions]
    if not eligible:
        raise NoEligibleRoute(request.capabilities, request.region)

    bucket = stable_hash(request.tenant_id, request.request_id) % sum(r.weight for r in eligible)
    for route in eligible:
        bucket -= route.weight
        if bucket < 0:
            return route
    raise AssertionError("unreachable")

Update health from bounded windows, not one isolated error.
Cap per-route concurrency and remove a route gradually to avoid traffic shocks.
Measure accepted quality, latency percentiles, errors, and cost by workload—not globally.

Verified implementation reference: OpenTelemetry GenAI conventions.

FAQ

Can I mix different models?

Only if the workload contract accepts their capability and quality differences.

What strategy should I start with?

A simple weighted or round-robin policy plus strict health removal is easier to validate.

Is fallback part of balancing?

It is related but distinct: balancing chooses before execution; fallback reacts after failure.
