Multi-LLM Architecture: Make Differences Explicit

TL;DR

Four multi-LLM architecture patterns

Active-passive failover keeps a verified alternate ready for availability incidents. Capability routing selects a model that supports required modalities, tools or context. Cost or latency tiering sends routine tasks to an efficient route and escalates only when a validator says more capability is needed. Ensembles call several models and combine, rank or debate their outputs.

A system may use several patterns for different workloads, but each adds a distinct risk. Failover can introduce semantic drift, tiering can misclassify hard requests, capability routing depends on accurate catalog data, and ensembles multiply latency and cost while still needing a trustworthy aggregation rule. Choose the pattern from the failure or quality problem being solved, not from the number of providers available.

The stable abstraction is a versioned workload contract, not a universal model. It describes the required outcome, schema, tools, region, safety rules, deadline, quality floor and cost ceiling. A capability catalog and policy router map that contract to eligible endpoints; narrow provider adapters contain unavoidable protocol differences without leaking them into application code.

Multi-LLM patterns and tradeoffs

Build around versioned contracts

Validate a multi-model production path

Test each pattern at the workflow level. A model can pass a one-shot benchmark yet fail because it emits a different tool schema, handles cancellation poorly or produces invalid structured output after a fallback. Use real workload distributions and validators that represent the business outcome.

• Create golden workload sets with capabilities, policy constraints and measurable acceptance criteria.
• Contract-test every eligible endpoint and adapter before adding it to the versioned catalog.
• Replay routes under provider outage, quota pressure, slow streams, stale catalog data and validator failure.
• Measure semantic validity, tool completion, tail latency and total cost per accepted outcome—not isolated token prices.
• Test disagreement and aggregation rules for ensembles, including the case where no answer should be accepted.
• Canary policy changes by workload with evaluation gates and an immediate rollback to the prior version.

Connect contracts, catalogs and evidence

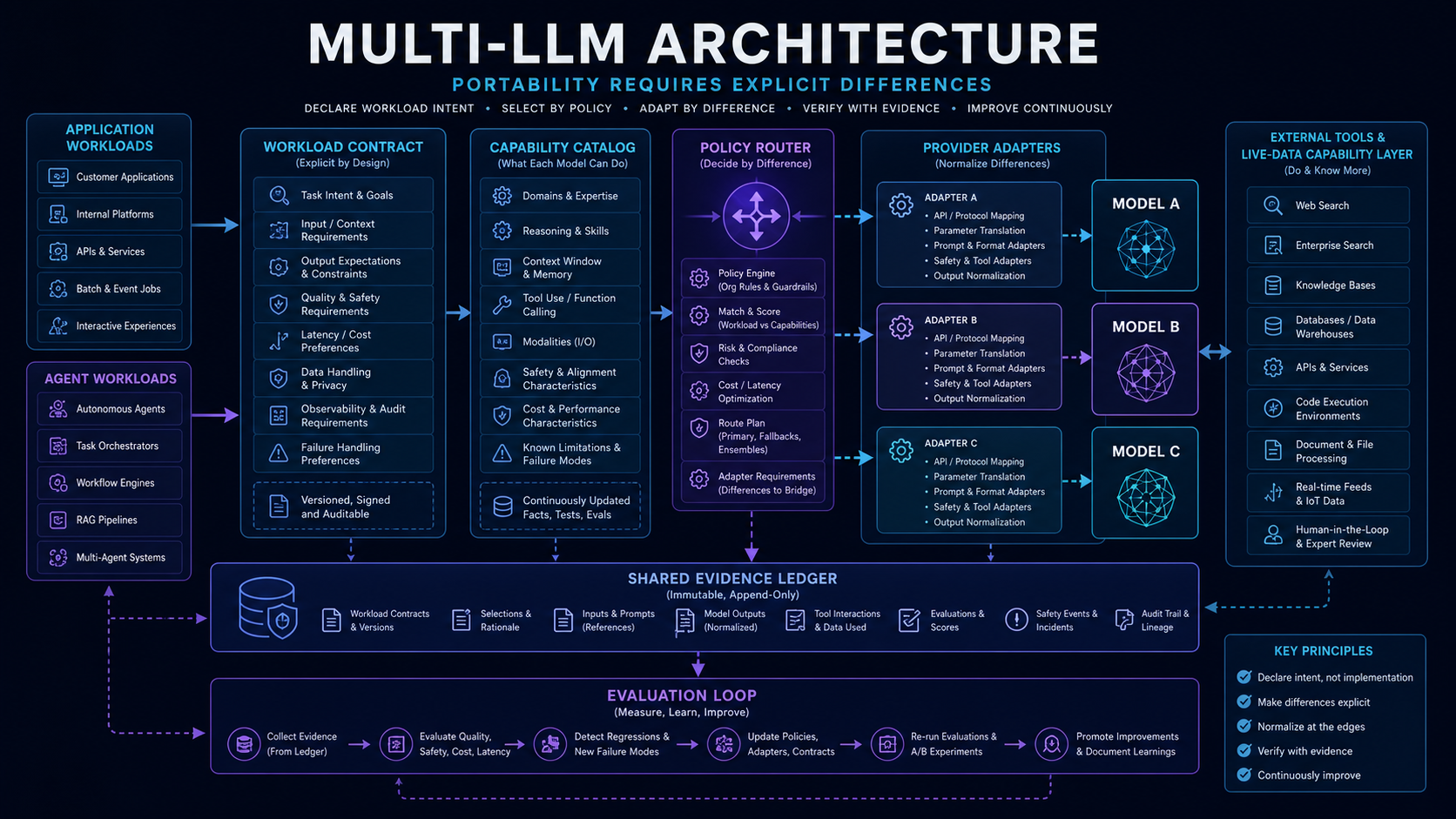

Applications submit a workload alias and versioned contract. The router joins it with an auditable capability catalog, tenant policy and current operational state, then produces a route plan containing the endpoint, adapter, fallback limit and validation rule. Hard filters run before any cost or latency optimization so an ineligible model cannot win on score.

The gateway executes the plan under one parent deadline and writes normalized plus provider-native evidence for every attempt. Store the contract, catalog and policy versions, candidate exclusions, selected route, validation result and usage. Offline evaluations can update catalog confidence and propose future policy changes, but should not mutate an in-flight decision.

Add an external capability layer to the model layer

Multiple models broaden inference options; they do not automatically provide reliable access to external APIs, tools, services and live data. QVeris supplies that complementary capability layer through Discover → Inspect → Call. Inspect the capability schema, permissions and provider evidence independently of whichever model the router selected.

Carry one workflow trace across model selection and capability execution, while maintaining separate credentials, action IDs, retry budgets and availability policies. When a fallback occurs after a tool result is already verified, pass that result to the next model instead of repeating the external action unless its freshness contract explicitly requires a new call.
