SECURE PROXY ARCHITECTURE GUIDE
OpenAI API Proxy
Security and Setup
Validate an OpenAI API proxy across credentials, routing, logging, streaming, and failure handling before production use.
Published: March 15, 2026 · By the QVeris Team
On this page
Summary

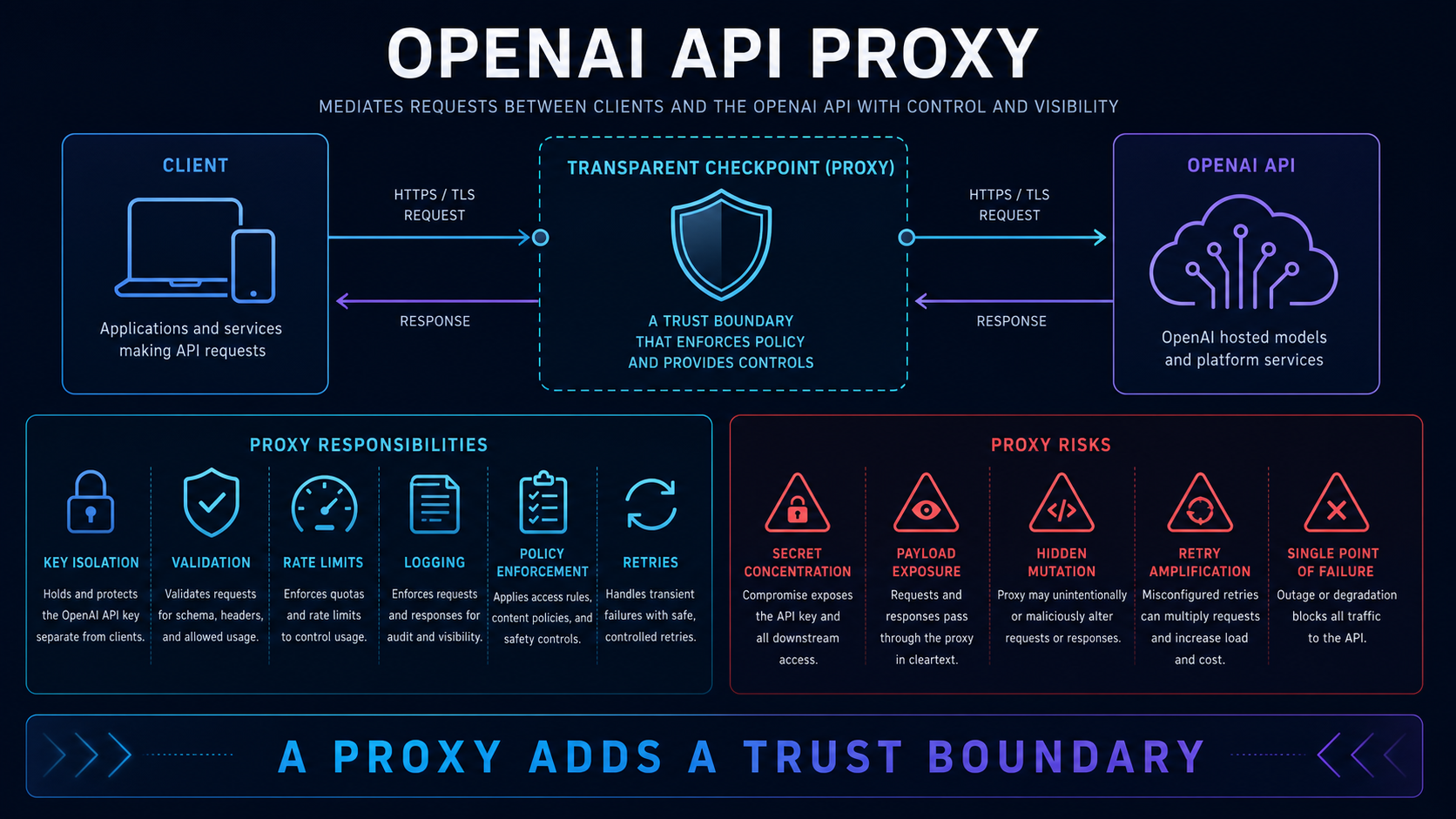

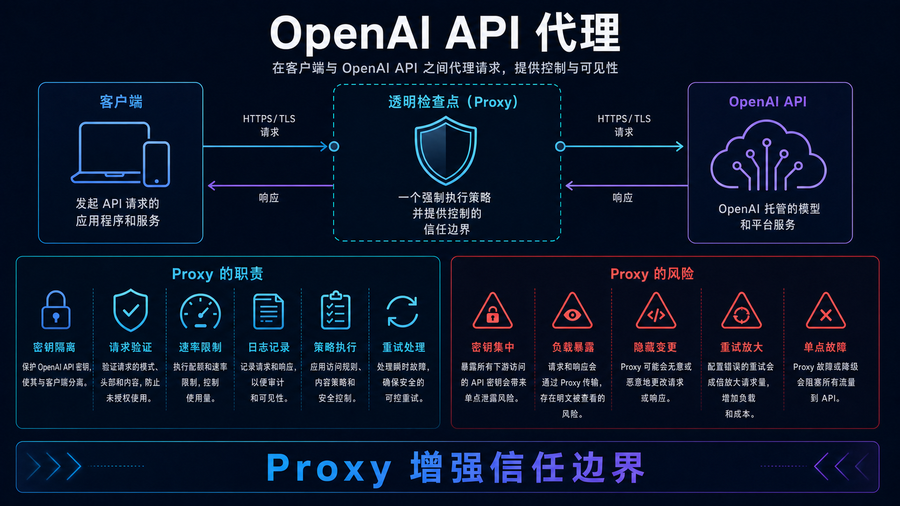

Direct answer: an OpenAI API proxy is a server-side intermediary between applications and the OpenAI API. It authenticates the caller, validates and limits the request, attaches a protected upstream credential, forwards approved traffic, preserves streaming, and returns the response while recording only the evidence the operator intentionally retains.
Protect keys, not anonymous access
A proxy removes the provider key from clients, but it still needs its own user or workload authentication, authorization, abuse controls, and quotas.
Treat it as a trust boundary
The proxy can see prompts, files, tool arguments, outputs, usage, and upstream credentials. Its operators, logs, plugins, and dependencies enter the security model.
Preserve protocol semantics
Streaming events, cancellation, native request IDs, errors, usage, tool calls, and structured output should not be silently changed.
Keep behavior provable
Version every mutation, name one retry owner, define retention, test failure paths, and maintain an emergency rollback or alternate route.
What an OpenAI API proxy is—and is not
At its simplest, the proxy exposes a server-side endpoint shaped like the OpenAI API, receives a request from an approved application, and forwards it to the configured OpenAI endpoint with a credential stored on the server. This solves a narrow but important problem: untrusted clients no longer receive or transmit the upstream secret.
A proxy does not automatically make an integration secure. If it accepts requests without authenticating users, allows arbitrary models or upstream URLs, permits unbounded bodies, logs sensitive content, or exposes detailed upstream errors, it can move the key while creating a larger abuse surface. It also does not automatically become an AI gateway: routing, budgets, guardrails, caching, provider translation, and multi-tenant governance are optional capabilities.
The production request flow, step by step
| Step | Proxy responsibility | Evidence |
|---|---|---|
| 1 | Terminate TLS; reject invalid method, path, content type, and oversized body | Request ID, route, rejection category |
| 2 | Authenticate the user or workload and authorize the requested operation | Actor, tenant, policy version, decision |
| 3 | Validate the payload, model alias, tools, limits, and metadata | Schema version, alias, matched limit |
| 4 | Resolve a server-side endpoint and credential; never trust an upstream URL or key from the client | Route ID and secret reference, not secret value |
| 5 | Forward with a total deadline, preserve streaming and cancellation, and apply one bounded retry policy | Attempts, timing stages, bytes or events delivered |
| 6 | Return stable client errors while retaining native IDs, model, usage, and finish state for diagnosis | Upstream request ID, status, usage, final outcome |
Proxy, gateway and compatibility endpoint
A transparent proxy may forward the OpenAI contract with minimal change. A compatibility proxy may translate requests to other upstreams. A gateway adds broader identity, policy, quotas, routing, cache and observability. Products can combine these roles, so the important question is what code touches the request and why.
The proxy becomes a high-value secret and data boundary. Evaluate who operates it, how credentials are stored, where payloads flow, what is logged, which fields are modified, and what happens when the proxy or upstream fails.
Proxy responsibilities and risks
| Control | Best fit | Verify before choosing |
|---|---|---|
| Key isolation | Keep provider keys out of clients and scope proxy identities. | Secret concentration increases blast radius; use least privilege, rotation and audit. |
| Validation and policy | Reject malformed, unauthorized or disallowed requests before upstream execution. | Define fail-open versus fail-closed behavior and preserve error evidence. |
| Logging and observability | Correlate clients, requests, upstream IDs, latency, usage and failures. | Redact sensitive content, control retention and limit operator access. |
| Retries and limits | Protect upstream capacity and recover from approved transient failures. | Nested retries can amplify load, cost and duplicate tool side effects. |
| Request transforms | Inject approved defaults, metadata or compatibility mapping. | Hidden mutation can change safety, output, cost and debugging behavior. |
Security controls for browser, mobile, and server clients
Never place an OpenAI provider key in browser JavaScript, a mobile binary, a desktop package, a public repository, or a user-controlled configuration file. A proxy keeps that secret on trusted infrastructure, but the proxy endpoint must not become an unauthenticated relay that anyone can spend through.
Authenticate and authorize
Validate the user session or workload identity, then authorize the specific model alias, operation, tenant, and feature. Do not use one static proxy key for every client.
Constrain input
Allowlist paths, methods, models, tools, and parameters. Limit content length, file size, tool count, maximum output, concurrent streams, and request rate before contacting upstream.
Prevent request forgery
Configure upstream hosts on the server. Reject client-supplied URLs, redirect following, internal address ranges, unexpected schemes, and arbitrary proxy headers.
Protect errors and secrets
Strip authorization and hop-by-hop headers, sanitize logs, return stable client errors, and keep secret values out of traces, crash reports, and support bundles.
Streaming is a protocol contract, not a response body
A production proxy must preserve event order, framing, keep-alive behavior, backpressure, client cancellation, and the final completion state. Buffering the complete response before returning it destroys time-to-first-token and may increase memory use dramatically. Applying ordinary compression or response transformations can also delay events or break clients.
Use separate connection, first-byte, idle-stream, and total deadlines. When the client disconnects, propagate cancellation upstream when supported and stop consuming resources. If the stream ends after partial output, record the amount delivered and return or surface an explicit incomplete state; do not silently restart the request and concatenate a second model response.
Give retries one owner and a total deadline
The client SDK, application service, proxy, and upstream platform may each retry. When several layers retry independently, one user action can multiply into many paid requests and produce a traffic spike during an outage. Choose one layer to own retries, pass attempt metadata, and enforce a total deadline across connection, queueing, generation, and any retry delay.
| Condition | Safer behavior | Reason |
|---|---|---|
| Connection failed before any response | One bounded retry with jitter if deadline remains | No output was delivered; transient recovery may help |
| Upstream rate limit | Honor retry guidance, queue only within a strict deadline, or return a stable overload error | Immediate retry can worsen saturation and cost |
| Partial stream already delivered | Do not automatically retry; mark incomplete | A second response may duplicate or contradict output |
| Tool call may have side effects | Require idempotency or explicit recovery | Blind retry can repeat external actions |
Log enough to diagnose, not enough to leak
Useful proxy telemetry connects the client request ID, authenticated actor, tenant, model alias, native upstream request ID, native model, attempt count, status, timing stages, token usage, finish reason, and transformation version. These fields usually answer availability and cost questions without storing full prompt or response bodies.
If payload capture is required for quality or support, make it a separate, access-controlled mode with explicit sampling, redaction, retention, customer consent, and deletion. Do not allow debug logging to become a permanent shadow database. Ensure third-party APM, exception tracking, and support systems follow the same data policy.
Evaluate the proxy as a security product
Operator and deployment
Identify ownership, region, network path, updates, dependencies and support boundary.
Data handling
Document encryption, logging, redaction, retention, training use and deletion.
Mutation contract
Version every header, field, prompt, tool, stream, error and usage transformation.
Recovery path
Test direct or alternate access, credential rotation and proxy-unavailable behavior.
OpenAI API proxy production checklist
Identity and abuse
Every client is authenticated; operations are authorized; credentials are scoped; per-user or workload quotas exist; anomalous traffic and spend are detected.
Request boundary
Paths, methods, models, tools, MIME types, parameters, body size, output tokens, concurrency, and upstream endpoints are constrained server-side.
Data handling
Payload exposure, redaction, sampling, log destinations, retention, deletion, operator access, subprocessors, and support workflows are documented and tested.
Protocol fidelity
Direct and proxied results are compared for streaming events, cancellation, tool calls, structured output, errors, native IDs, usage, and finish states.
Reliability
Connection, first-byte, idle, and total deadlines exist; one retry owner is defined; overload is bounded; partial streams and client disconnects are visible.
Operations and recovery
Key rotation, deployment rollback, proxy outage, upstream outage, telemetry failure, configuration recovery, incident export, and emergency alternate access are rehearsed.
Threat-model and failure-test the proxy
- Map trust boundaries, payload classes, credentials and every storage location.
- Diff proxied and direct requests, streams, errors, usage and native IDs.
- Inject proxy timeout, restart, partial stream, upstream 429 and credential failure.
- Verify retries cannot duplicate non-idempotent tool or external actions.
- Exercise emergency bypass, key rotation and incident evidence export.
Make the checkpoint explicit
Clients authenticate to the proxy with scoped identities. The proxy authorizes the workload, validates the OpenAI-shaped request, applies versioned and observable transforms, enforces budgets and forwards with a protected upstream credential. The response retains native IDs and transformation evidence. Direct rollback is isolated and tested.
Production rule: a proxy may simplify client access only after its additional trust and failure modes are accepted.
Common OpenAI API proxy failure modes
Unauthenticated relay
The provider key is hidden, but anyone can call the public proxy and consume quota because caller identity and authorization were never implemented.
Arbitrary upstream forwarding
A client-controlled base URL, redirect, or header turns the proxy into an SSRF path toward internal services or attacker-controlled endpoints.
Secret or payload logging
Authorization headers, prompts, files, or responses enter ordinary application logs, APM traces, exception reports, or support bundles.
Buffered streaming
The proxy waits for the full response, increasing time to first token, memory, timeout risk, and the impact of large generations.
Retry amplification
Client, application, proxy, and upstream retries combine, multiplying paid requests exactly when the provider is overloaded.
Hidden request mutation
Default prompts, tools, parameters, model aliases, or safety fields change without a versioned record, making quality and incidents impossible to reproduce.
A model proxy is not an external capability catalog
The proxy governs OpenAI-shaped inference traffic. QVeris complements it by discovering and calling external APIs, tools, services and live data. Keep tool identities and side-effect evidence distinct from the model proxy, then connect both through the parent workflow trace.
Keep the proxy policy smaller than the API
A safe proxy should authenticate the caller, resolve an allowlisted model alias, enforce request limits, attach trace context, and forward to a configured upstream. It should not accept arbitrary upstream URLs, raw provider keys, or unbounded request bodies from clients.
Proxy boundary pseudocode
POST /v1/chat/completions
authenticate(caller_token)
require(content_length <= 1_000_000)
alias = require_allowlisted(request.model)
policy = load_versioned_policy(caller, alias)
upstream = policy.endpoint # server-side configuration only
key = secret_store.get(policy.key_ref)
trace_id = new_trace_id()
response = forward(upstream, key, request, trace_id, timeout=30s)
log(trace_id, caller, alias, response.model, response.usage, response.status)
return redact_and_normalize(response)- Strip hop-by-hop headers and never log authorization or full sensitive prompts.
- Define exactly one retry owner and prevent duplicate non-idempotent tool effects.
- Test SSRF, redirect, oversized body, invalid JSON, timeout, and upstream error cases.
Verified implementation reference: OWASP API Security.
Continue with related implementation guides
Use these adjacent guides to compare the next architectural decision, implementation boundary, or operating control without starting the research again.
FAQ
Is an OpenAI API proxy the same as OpenAI?
No. It is an intermediary operated by you or a third party, with its own controls and risks.
Why use one?
To isolate keys, centralize policy, apply limits, add evidence or bridge a compatible client contract.
What should never be hidden?
Request mutations, retry behavior, data handling, upstream identity, native IDs and final error causes.
More OpenAI API proxy questions
Is a proxy safe for browser or mobile apps?
Only when it authenticates users, authorizes operations, validates and limits input, blocks arbitrary upstream URLs, controls abuse, and never returns the provider key.
Does the proxy store prompts?
It does not have to, but it can see them in transit. Logging, redaction, retention, access, deletion, and third-party telemetry must be explicitly defined.
Proxy or AI gateway?
A proxy is the forwarding boundary. An AI gateway normally adds model-aware routing, normalization, budgets, guardrails, caching, and governance. One product may perform both roles.
Official sources and further reading
OpenAI APIs, supported fields, data controls, and SDK behavior evolve. Verify current primary documentation and test the exact endpoint and features your proxy forwards.
